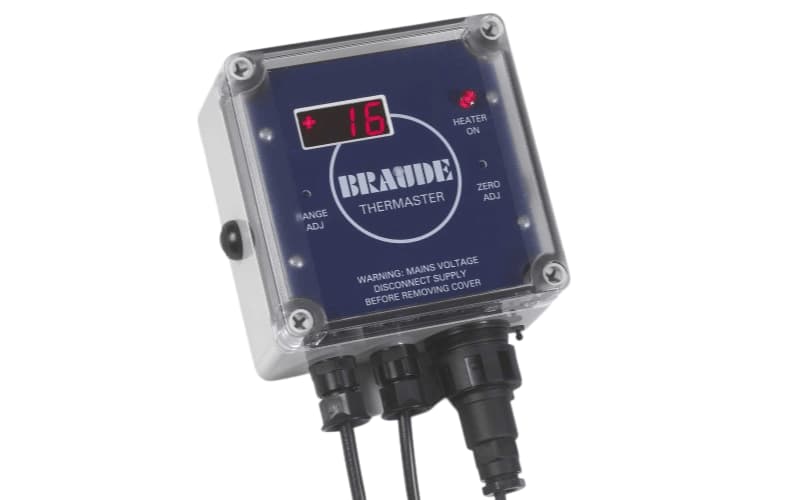

Braude thermaster controller

The Thermaster is a fully automatic temperature controller which will operate without attention once set up. Designed for use with TPOMKV acidproof probe.  2m lead as standard, with longer lengths available to order. The enclosure is designed for surface mount making it suitable for operation at the point of use and is completely moisture proof sealed to IP65. It has a large clear display.

Technical data

• Range -10°C to +110°C, ±1°C accuracy
• Relay operation: 2 or 3 wire output, break on rise (std) or make on rise*
• “Heater on” display
• “Probe fault” indication
• The controller operates on 240V as  standard, 110V available.
• Probes are fully non-corrodable, deposit resistant and virtually unbreakable.
• Weight: 2 kg
• Wattage at 230V: 1000W, 2000W and 3000W
• Cable length: 1.5mtr and 5.0mtr
• Profile: Low/Wide, circular and High/Narrow

The Polaris Modular and Popular fluoropolymer immersion heaters are designed for use where aggressive chemicals need to be heated to temperatures up to 100°C. All heaters have optimum chemical resistance against corrosion caused by chemicals such as nitric, hydrochloric, sulphuric and hydrofluoric acids, and are inert enough to be used where non-contamination is a requirement. The element has an open construction to allow free flow of liquid across the surface and to limit solid retention, which is particularly important when used in solutions which generate solid deposition such as Electroless Nickel and Copper plating processes. The heater is thin enough to fit easily into confined spaces eg. behind anode baskets.
