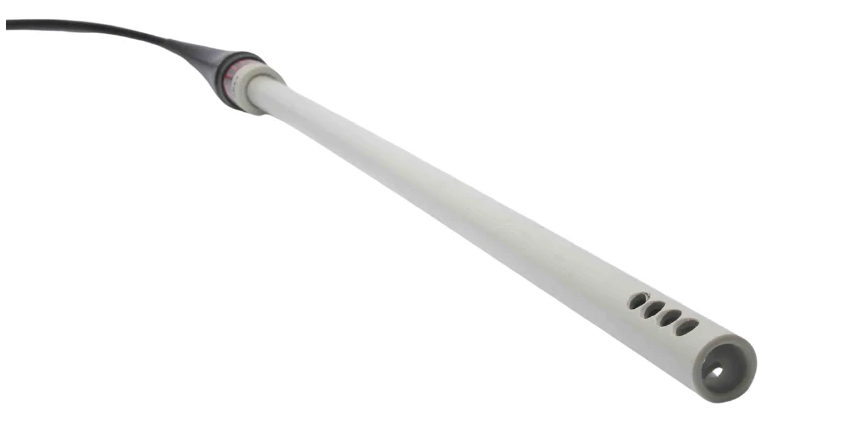

Braude Thermaster PT100 – Corrosion proof probe

The Braude Thermaster replacement | Acidproof, 0.5m long probe and 2m lead

The element has an open construction to allow free flow of liquid across the surface and to limit solid retention, which is particularly important when used in solutions which generate solid deposition such as Electroless Nickel and Copper plating processes. The heater is thin enough to fit easily into confined spaces eg. behind anode baskets.

• Acidproof
• PT100 sensor, no capillary or compensating cable, no moving parts.
• Non-corrodible, deposit resistant and virtually unbreakable.
• Firm, rigid location system
• Leads 0.5m standard, extendible or ordered to suit
• Fitted with integral moisture proof plugs for connection to Master controllers
• Sturdy robust constructions to withstand the danger of damage when used in tank.

Technical data

• Range -10°C to +110°C, ±1°C accuracy
• Relay operation: 2 or 3 wire output, break on rise (std) or make on rise*
• “Heater on” display
• “Probe fault” indication

*The controller operates on 240V as  standard, 110V available.

Probes are fully non-corrodable, deposit resistant and virtually unbreakable. The Polaris Modular and Popular fluoropolymer immersion heaters are designed for use where aggressive chemicals need to be heated to temperatures up to 100°C. All heaters have optimum chemical resistance against corrosion caused by chemicals such as nitric, hydrochloric, sulphuric and hydrofluoric acids, and are inert enough to be used where non-contamination is a requirement.
