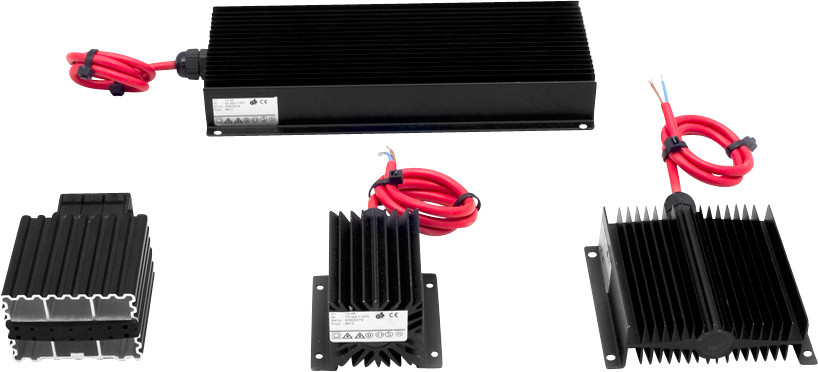

Cabinet heaters prevent damp and condensation
Cabinet heaters are used to prevent the formation of damp and condensation in cabinets, electrical equipment and electronic information boards. Cabinet heaters are constructed with black anodized aluminum sections and are designed for maximum heat emission. The surface temperature of the heater is low, which enables safe installation close to electronic equipment. The cabinet heaters are feature with a thermal cut-off and meet the requirements for protection class IP55. A 0.5m power cord is included. Accessories for mounting on a DIN bar can be ordered separately.
Technical data – Designed for maximum heat emission
|
Type |
LxWxH mm |
Power W |
Voltage V |
Art.no. |
|---|---|---|---|---|
|
PTC |
75x72x57 |
15 |
14-48 |
3060 505 005 |
|
PTC |
75x72x57 |
15 |
110-240 |
3060 505 013 |
|
Thermostat |
145x72x57 |
75 |
240 |
3060 505 021 |
|
PTC |
100x116x33 |
20 |
12-48 |
3060 505 039 |
|
PTC |
100x116x33 |
20 |
110-240 |
3060 505 047 |
|
PTC |
100x116x33 |
20 |
12-48 |
3060 505 054 |
|
PTC |
250x116x33 |
40 |
110-240 |
3060 505 062 |
|
PTC |
250x116x33 |
40 |
220-440 |
3060 505 070 |
|
PTC |
250x116x33 |
40 |
230 |
3060 505 088 |
|
Thermostat |
250x116x33 |
100 |
203 |
3060 505 096 |
|
Thermostat |
250x116x33 |
160 |
3060 505 104 |
- Material:
- Black anodized aluminium
- Anodized aluminium
- Dimension:
- 75 x 72x 57 mm
- 78.5 x 41 x 41 mm
- 102.5 x 41 x 41 mm
- 123 x 41 x 41 mm
- 145 x 72 x 57 mm
- 100 x 116 x 53 mm
- 250 x 116 x 33 mm
- Fields of application:
- Cabinets
- Electrical plants
- Electronic information boards
- Fuel pumps
- Engines / drives
- Weather stations
- Connection: Cable included
- Types:
- Protection class IP20, IP55
- Standard range
- According to customer specification
- Model with fan
- Others:
- Power at 10°C: 15, 20, 40, 70, 80, 120, 100, 160, 200 W
- Alternative: cabinet heater in silicone with cable
- Regulation: Self-regulating PTC-element, thermal cut-off
Anti-Condensation heaters | Cabinet heater – black anodized aluminum with cable
Anti condensation heaters are used to prevent moisture and condensation in cabinets, electrical plants and electronic information boards. The heaters are designed for optimal heat emission. The surface temperature of the heater is low, enabling a safe position near other electronic equipment. The heater is furnished with a temperature limiter and fulfils protection class IP55. Connection cable included. Accessories for assembly on a DIN bar are ordered separately.
- Info tables
- Cabinet heater
- Electrical cabinets
- Fuel pumps
- Offshore
- Space industry
- Computers/IT/Telecom
- Engines
