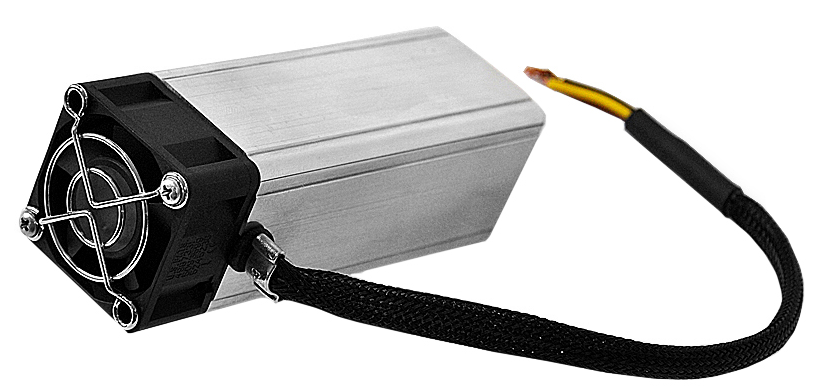

Cabinet heaters prevent damp and condensation
A compact cabinet heater from Backer, for climate control and prevention of condensation and freezing, indoors or outdoors, in for example control cabinets. The product is developed with the PTC Technology as base, which
eliminates the need for thermal cut-off. The dimensions of the heater are small, still allowing high power, to make the cabinet heater useful in a wide range of product applications.
Technical data – Protection class IP 20
|
Type |
LxBxH mm |
Power W |
Voltage V (fan) |
Art.no |
|---|---|---|---|---|
|
ACHF1 |
123x41x41 |
200 |
230VAC/24VDC |
2550 645 901 |
|
ACHF1 |
102,5x41x41 |
120 |
230VAC/24VDC |
2550 645 902 |
|
ACHF1 |
78,5x41x41 |
80 |
230VAC/24VDC |
2550 645 903 |
- Voltage:
- Heating part 230VAC
- Fan 24VDC
- Fixing device: DIN Clip
- Material: Anodized aluminum
- IP Classification: IP20
- Safety:
- The elements meet requirements acc. to
- EN 60335-1
- CE marked
Anti-Condensation heaters
Anti condensation heaters are used to prevent moisture and condensation in cabinets, electrical plants and electronic information boards. The heaters are designed for optimal heat emission. The surface temperature of the heater is low, enabling a safe position near other electronic equipment. The heater is furnished with a temperature limiter and fulfils protection class IP20. Accessories for assembly on a DIN bar are ordered separately.
- Info tables
- Cabinet heater
- Electrical cabinets
- Fuel pumps
- Offshore
- Space industry
- Computers/IT/Telecom
- Engines
Benefits
- No risk for over heating
- The fan can run separately
