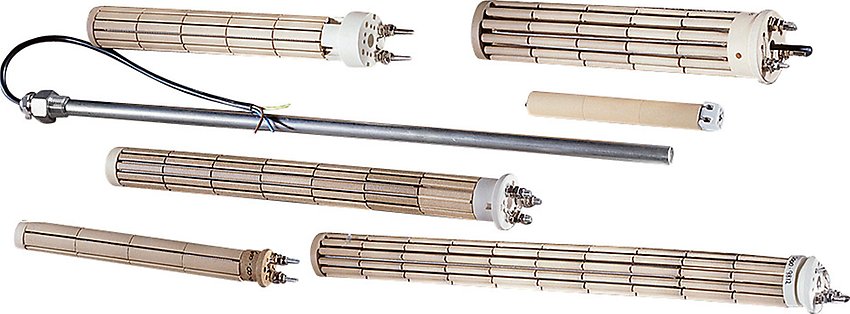

Ceramic heating elements

Ceramic heating elements for indirect heating of liquids

Ceramic elements are used for indirect heating of liquids in electrical water heaters, boilers, oil pre-heaters and industrial baths. For these applications, the ceramic element is mounted in a tube. Ceramic heating elements are preferred when the exchange of elements without emptying the tube or container is required. The elements are also used in applications with demands for reduced lime or coke formation, and when increased wall thickness of the tube due to heavy pressure stresses is required.

Example applications – Ideal for heating industrial baths, boilers and air pre heaters

Ceramic elements are used for heating fluids in boilers, water heaters and tanks; and for heating air/gas in ovens Etc. The heater is often mounted onto a welded or assembled tube which makes it possible to exchange the element without emptying the container.

• Industrial baths
• Electrical water heater
• Boilers
• Oil pre heaters
• Air pre heaters
• Hot blast furnaces

Technical data

• Type of heating:
  • Indirect – liquid
  • Direct – air
• Material: Steatite
• Dimension:
  • Ø 6.5 mm, 8.3 mm, 10 mm, 11.5 mm, 12.5 mm
  • Ø 15.8 mm, 20 mm, 22 mm, 26 mm, 31 mm
  • Ø 35 mm, 36 mm, 39 mm, 46 mm, 57 mm
• Fields of application:
  • Industrial baths
  • Water heaters
  • Boilers
  • Oil pre-heaters
  • Air pre-heaters
  • Hot blast furnaces, etc
• Connection:
  • M5
  • Cable
• Others:
  • Round
  • Flat
