Defrosting elements preventing ice formation

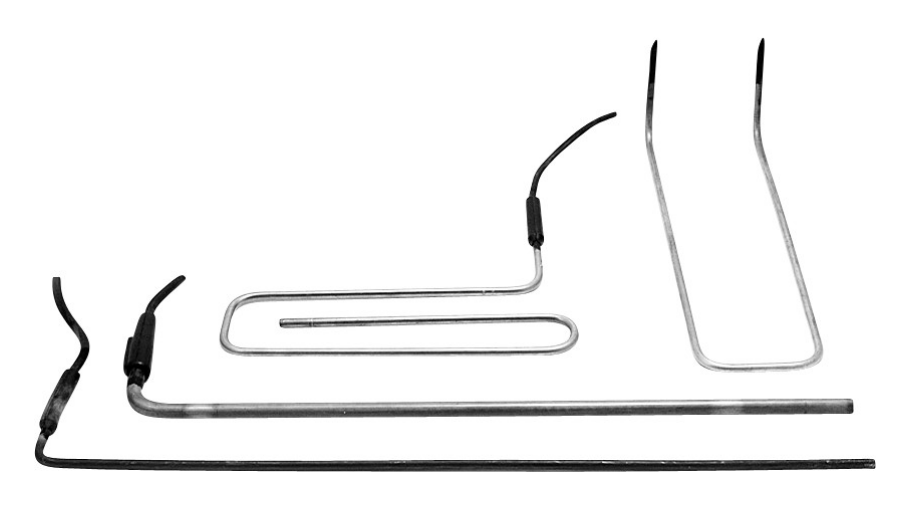

Backer tubular heating elements are often used in defrosting. Tubular heating elements are used to prevent ice formation and to thaw ice in cooling and freezer units, air-conditioning plants, compressors and outdoor installations.
Examples of applications | Ideal for freezer units, air-conditioning plants and outdoor installations
In all kinds of freezing, cooling and climate controlled plants there is a need for some kind of defrosting. Backer provides different technologies for this purpose, tubular elements being one of them.
- Freezer and cooling equipment
- Compressors
- Professional kitchens
- HVAC
- Outdoor use
Technical data
|
Material |
Stainless steel: |
|
Dimension |
Ø 6.4, 8.5, 14 mm |
|
Assembly |
Fixing in the object |
|
Connections |
Vulcanized terminal – Oil resistant cable |
|
Design |
One or two wattage ratings/element |
|
Others |
Sealing: Vulcanized terminal, terminal box |
Standard element TP type
|
Power |
650 W – 2000 W |
|
Voltage |
230 V, 400 V or. 440 V |
|
Insertion length |
350 mm – 2750 mm |
