Resistors, increasing energy efficiency
Backer supplies a wide range of resistors used in many diffrent applications, helping to protect the environment by increasing energy efficiency. Wind turbines, industrial drive systems, public transport systems, marine propulsion, and nuclear research institutes – all need resistors to increase the efficiency of their systems. We use thermal simulation software to optimize and customize our solutions to perfectly align customer requirements with customers and specific applications.
Thermal simulation software optimizing and customizing the solutions to fit your specific requirements

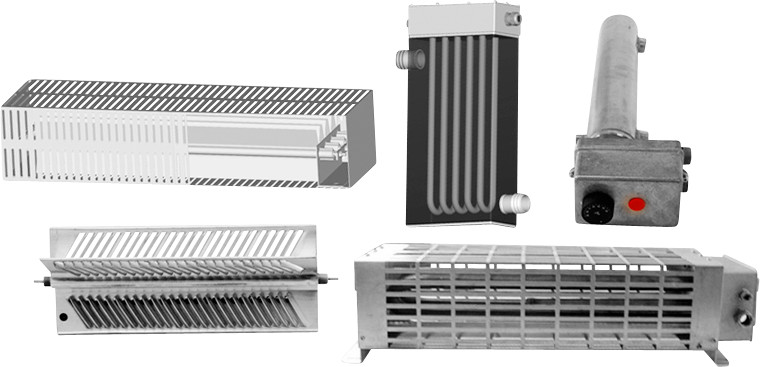

At the Backer Group, we can offer a wide range of technologies for the production of resistors. An advantage with resistors from Backer is that they can withstand high loads, since we use large diameter resistance wires that provide low resistance. The option of using water/liquid as cooling media enables high power resistance. We also have large element diameters, for higher voltages. All resistors are custom made, but our standard concept speeds the development process. The elements are fully tested for insulation and dielectric rigidity. Moreover, the elements are often built into protective cages to prevent contact with heated parts. Computerized load simulation is also performed to optimize each resistor application. Terminal boxes with different IP classes can be used. Numerous elements are often connected together, in series and/or parallel, to achieve the intended properties.
Resistors for a wide range of applications and industries – Examples
- Brake resistors
- Power resistors
- Load resistors
- Shunt resistors
- Water-/liquid cooled resistors
We provide solutions e.g. for trains, hybrid vehicles, wind turbines, ships, power grids and elevators | Applications
- Trains
- Hybrid vehicles
- Wind power turbines
- Ships
- Cranes
- Trams
- Frequency converters
- Sine-wave filter resistors
Other resistors – a wide product range
The Backer Group, specializes in electrical resistors and brake resistors. We are known worldwide for our high quality design and resistor production fore electro, mechanic-, wind power and telecom for example.
Among our products:
- Resistors in aluminum housings
- Ceramic wire-wound resistors
- Open wire-wound resistors
- Rheostats
- Steel grid resistors
Resistors – Technical data
|
Material |
Steel – Grade D |
|
Types of cooling |
Air: convection or forced convection |
|
Dimensions |
Tubular elements: Ø 8.5, 14, 21 mm |
|
Attachment of elements |
Flanges: welded or brazed |
|
Connection |
Wiring |
|
Ø 8.5mm alu-section |
Ø 14mm alu-section |
Ø 18mm alu-section |
Ø 21mm alu-section |
||
|
Min. resistance/ element |
0.12 ohm/m |
0.06 ohm/m |
1.6 ohm/m |
1.5 ohm/m |
|
|
Resistance tolerance |
± 5% |
± 5% |
± 5% |
± 5% |
|
|
1.5 kV DC |
4 kV DC |
7 kV DC |
9 kV DC |
|
|
Length |
300-6000 mm |
300-6000 mm |
300-1500 mm |
300-1500 mm |
|
|
Min. bending radius |
12.5 mm |
25 mm |
40 mm |
60 mm |
|
|
Inductance |
0.5-1 µH/element |
||||
