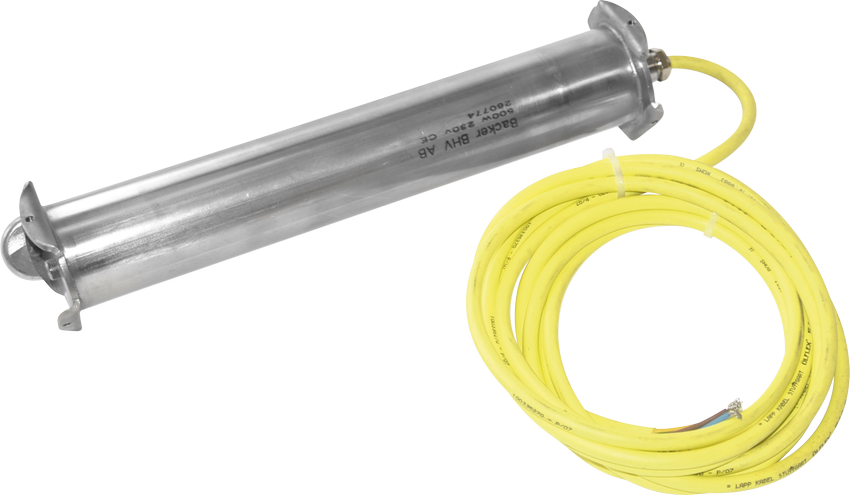

Submersible oil heater
The working temperature is regulated via an integrated thermostat/fuse. For thermostat 70-150°C. For fuse 128°C, 152°C (the temperature of the components is validated based on the desired operating conditions).
Technical data | High voltage tolerance with integrated temperature regulation
|
Material |
Stainless steel EN 1.4301/SS 2333 |
|
Connection |
Electrical connection 3×1.0 mm², 4 meter cable |
|
Voltage |
standard: 230 V, 24 V or per customer spec. |
|
Hysteresis |
11°C or per customer spec. |
|
Weight |
1.4 – 3.1kg |
|
Assembly |
No attachment device needed, attatched with integrated magnets at the bottom of the container. |
|
Surface load |
0.9W/cm² |
|
Safety |
CE marked per LVD. 2006/95/CE |
|
Others |
Heater complete with thermostat. Should be at least 3 cm below surface during use. Not to be used with fluids that have a flame temperature below 190°C |
|
Power W |
Voltage V |
Cutting temp. |
Dimension LxWxdia. mm |
Art.no. |
|
250 |
230 |
40°C |
225x74x67 |
6150 432 301 |
|
500 |
230 |
40°C |
325x74x67 |
6150 432 302 |
|
1000 |
230 |
40°C |
525x74x67 |
6150 432 303 |
|
250 |
230 |
20°C |
225x74x67 |
6150 432 304 |
|
500 |
230 |
20°C |
325x74x67 |
6150 432 305 |
|
1000 |
230 |
20°C |
525x74x67 |
6150 432 306 |
|
250 |
24 |
20°C |
225x74x67 |
6150 432 307 |
|
250 |
24 |
40°C |
225x74x67 |
6150 432 308 |
Benefits
The submersible oil heater from Backer is intended for pre heating of hydraulic oil before start up to minimize wear of the system. The preheating also reduces traces of water in the tank. Easy to use in existing oil tanks, there is no need for permanent installation. The oil heater is fastened in the bottom of e.g. the oil tank with integrated magnets. If the heater is to be lifted in and out of the tank regularly, we recommend the accessory kit with a lifting wire to minimize the risk of damaging the connection cable. The heater comes in six standard versions, but if desired it can be produced according to other specifications. More benefits:
- Integrated temperature regulation
- High voltage tolerance
- No permanent installation
- The whole heater can be under the fluid
Fields of application
- Gearboxes
- Hydraulic systems
