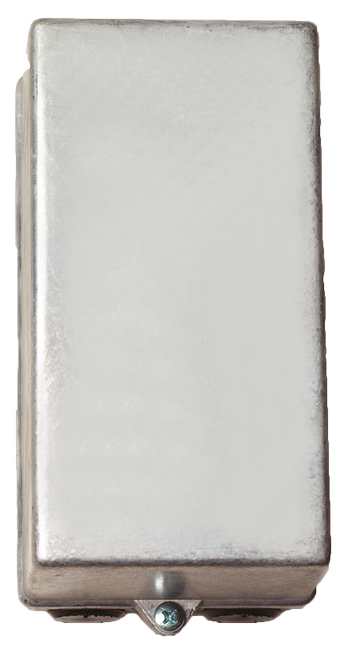

Terminal box K18

Terminal box K18

In silium, for installation on our G 2” element head. Rotating box for easy connection of cables. Incl. terminal block. Protection class IP65.

Protection class IP65

Terminal box completely in cast alumuinium, intended for our G 2’’ plug. The box is swiveled so that suitable orientation of cable entry can be obtained. Protection class IP 56.

Control unit for terminal box K18

• Intended for cartridge IU611, 611R
• Power stage 0 – ¼ – ½ – ¾ – 1
• Provided with 2 hours switching delay on the half effect during power outage. Provided with contactors for the switching delayed part. If desired, half of the effect can be deactivated, in case of overloading, via current relay.
• 4 pole thermostat 30-90°C
• 3 pole temperature limiter 110°C
• Timer and contactor
